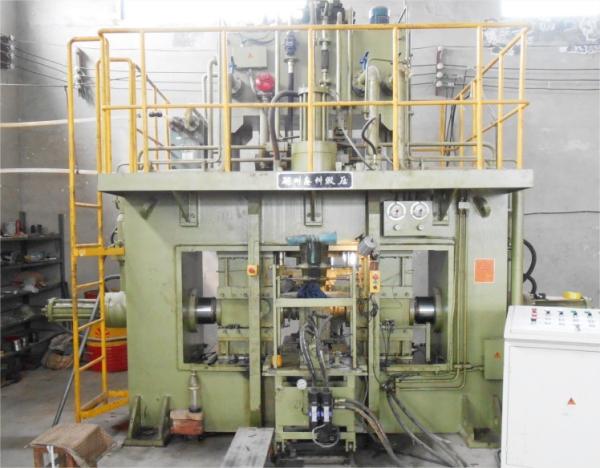

HY49 500T Hydraulic Cold Extruding Press

Characteristics:

HY49 Tee Extruding Hydraulic Press is the Best Choice of Shaft Parts in Bicycle. Main cylinder mould clamping, finishing billet Extrusion by two-side synchro Cylinder, and equipping hydraulic feeder to finish auto-feeding, extrusion and discharging, and no need adding other hydraulic and control system. The worker only need to add material into feeder, featuring reducing labor intensity, improving production efficiency and saving labor charges.

Gantry-style structure is with high rigidity, small deformation, big opening of two sides and wide usage. Main slider is driven by main cylinder, moving up and down in the direction of two guide pillar. Two opposing mould halves are respectively fixed in washer of working table and slider. After two opposing clamping, slider chucking extrusion billet. Extruding dies is fixed in two sides sliders, which are driven by two-side oil cylinder. To the need of high extruding rigidity, two-side sliders are guided by dovetail groove of slide rest, which is fixed on frame. Mechanical links device promises the precision of synchro.

Main cylinder and two-side cylinder fix growth cylinder to accelerate idle speed and return speed. Oil tank is on the top of machine, which is good for filling oil and reducing cover area. Valve integrated system adopt domestic Rexroth Valve with high system reliability and long using. Oil pump adopt imported Dannison high pressure vane pump with the features of small volume, high flow and long usage. In order to improve stability and extend hydraulic parts’ lifetime, this system equip with Suction Filter and finned water cooler to promise machine working stable.

Strength of electric separation design is adopted in electric system to enhance safety. High voltage ark is on the top of machine, near to electric motor. Electric motor is driven by Y, so that reducing driving load. PLC in Low voltage ark controls movement of machine, and control sign of PLC control execute components through miniature intermediate relay. PLC control is with feature of high reliability, convenient amendment, saving space and high response speed. Proximity switches are used in machine stroke with the feature of high location accuracy, no mechanical life and no damage.

Technical Parameters:

We, Huzhou Xinke Forging Machine Co., Ltd. with the certificates of ISO9001:2008 and CE, is a design, manufacture, assembly, installation, and after-sales service, marketing, R&D and export company in the business of hydraulic presses only.

We mainly serve the industries of automotive, aviation, household appliances, defense, electrical components through supply various kinds of hydraulic presses for sheet metal forming (drawing, blanking, stamping, punching, trimming), cold extrusion, hot forging, hydroforming (for pipe fitting), plastic molding, metal powder molding, and die spotting.

We established a standardized structure of corporate governance and adopted a management system of centralized decision-making, delegated authorities at different levels and business operations handled by specialized business units. Business assets are located in the mid east of China, where is 150km distance from Shanghai, China’s most developed and dynamic economy zones.

As an endeavor to become a multinational machine company with fairly strong international competitiveness, we will seriously implement strategies of resource, market, integration and internationalization with more focus on innovation of science, technology and management expertise, as well as improvement of employees’ quality.
