Sheet Metal Stamping Press Machine , 2500 Ton Four Pillar Hydraulic Press

    Buy cheap Sheet Metal Stamping Press Machine , 2500 Ton Four Pillar Hydraulic Press from wholesalers

    Buy cheap Sheet Metal Stamping Press Machine , 2500 Ton Four Pillar Hydraulic Press from wholesalers
    • Buy cheap Sheet Metal Stamping Press Machine , 2500 Ton Four Pillar Hydraulic Press from wholesalers

    Sheet Metal Stamping Press Machine , 2500 Ton Four Pillar Hydraulic Press

    Ask Lasest Price
    Brand Name : XINKE
    Certification : CE
    Price : USD 5,000-500,000 Per Unit
    Payment Terms : L/C, T/T
    Supply Ability : 10 units per month
    Delivery Time : 60-150 working days
    • Product Details
    • Company Profile

    Sheet Metal Stamping Press Machine , 2500 Ton Four Pillar Hydraulic Press

    Y32 2500T Four Column Hydraulic Stamping Press


    Features:

    1. Optimized by computer design, 3-beam, 4-column frame.
    2. Integrated cartridge valve is adopted. Electro-hydraulic valve is used for the presses of force below 500T. Tiny hydraulic impact, less piping connections.
    3. Independent electrical & electronic control system
    4. Button-operation. Mode: Manual, automatic
    5. Stroke, pressing force, pressure maintaining can be preset
    6. Working force is adjustable
    7. Servo system for saving electric power

    Application:

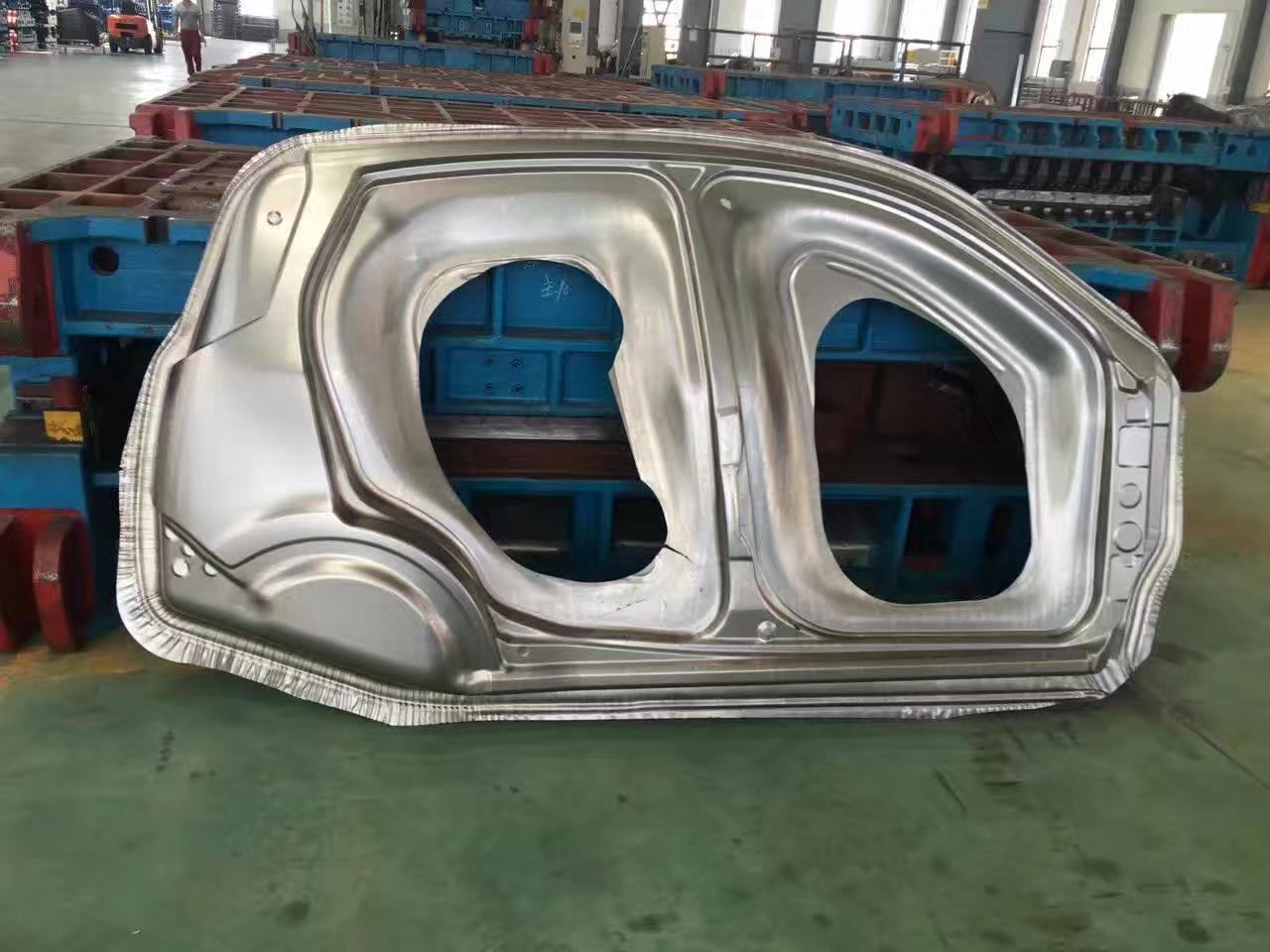

    Suitable for the process of drawing, bending, flanging, cold extrusion, punching, trimming of sheet metal as well as straightening, pressing fitting, and molding of thermal plastic and metal powder


    Accessories for option:

    Buffering device for punching and trimming

    Oil heating device

    Displacement sensor

    Touch-screen LCD

    PLC

    Floating guide rail for die exchange

    Lighting device

    Quick-change device of die

    Light curtain safety protection device


    Technical Data:

    ItemUnitY32-2500
    Nominal forcekN25000
    Ejecting ForcekN2500
    Return forcekN2000
    Max. Pressure of MediumMPa25
    Stroke of Slidermm1000
    Stroke of Ejectormm300
    The Max. Opening Daylightmm1600
    Speed of SliderDescendmm/s250
    Workingmm/s10/25
    Returnmm/s220
    Speed of EjectorEjectingmm/s150
    Returnmm/s200
    Size of worktableL.R.mm1800
    F.B.mm1500
    Overall size of machineL.R.mm6800
    F.B.mm3100
    Height above the floormm6200
    Worktable height above the floormm600
    Motor powerkW185
    Weight of Machinet92
