600T Hydraulic High Pressure Shaping Press

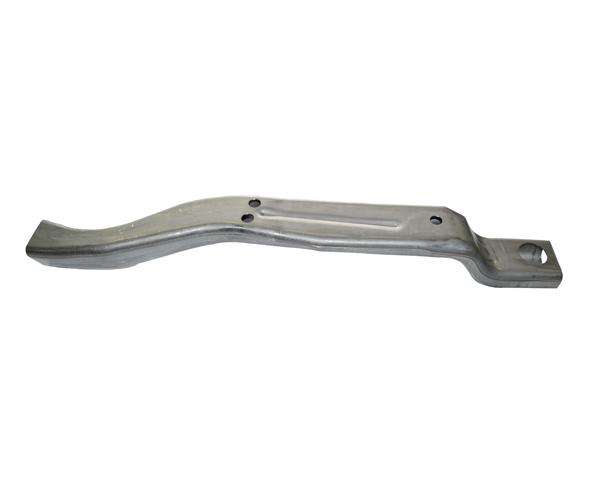

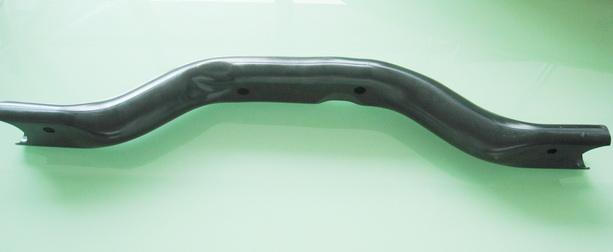

It is specialized in mass manufacturing special shaped tubular parts through filling high pressure liquid and axially feeding to tube material in the molds. The press is composed of horizontal servo cylinder, pressurization device, oil hydraulic system, water pressure system, computer control system.

The process flowchart: Bending, pre-shaping, internal high pressure shaping

Advantages:

High material saving

Low mould cost

Low production cost

One-time full shaping ensures good rigidity and integrity

Features:

The press and internal high pressure shaping device can be individually controlled and integrally controlled.

Mould clamping force varies according to hydroforming force in the work, to well protect the mould itself from tube expansion force.

Loading curve is precisely real-time controlled in the closed loop. In ultrahigh pressure condition (400MPa), internal pressure and axial displacement varies through the coordination of hardware and software according to set curve values.

We, Huzhou Xinke Forging Machine Co., Ltd. with the certificates of ISO9001:2008 and CE, is a design, manufacture, assembly, installation, and after-sales service, marketing, R&D and export company in the business of hydraulic presses only.

We mainly serve the industries of automotive, aviation, household appliances, defense, electrical components through supply various kinds of hydraulic presses for sheet metal forming (drawing, blanking, stamping, punching, trimming), cold extrusion, hot forging, hydroforming (for pipe fitting), plastic molding, metal powder molding, and die spotting.

We established a standardized structure of corporate governance and adopted a management system of centralized decision-making, delegated authorities at different levels and business operations handled by specialized business units. Business assets are located in the mid east of China, where is 150km distance from Shanghai, China’s most developed and dynamic economy zones.

As an endeavor to become a multinational machine company with fairly strong international competitiveness, we will seriously implement strategies of resource, market, integration and internationalization with more focus on innovation of science, technology and management expertise, as well as improvement of employees’ quality.
